[Noob Friendly] How to : Connect Wiimote to Dolphin + Use Wiimote in GameCube games
View New Posts | View Today's Posts

Pages (3): 1 2 3 Next »
Thread Rating:
  • 2 Vote(s) - 5 Average
  • 1
  • 2
  • 3
  • 4
  • 5
Thread Modes
[Noob Friendly] How to : Connect Wiimote to Dolphin + Use Wiimote in GameCube games
06-04-2012, 12:39 PM (This post was last modified: 10-13-2014, 08:36 PM by admin89.)
#1
admin89 Offline
Overclocker™ ✓ᵛᵉʳᶦᶠᶦᵉᵈ
*******
Posts: 6,889
Threads: 127
Joined: Nov 2009
Update info (11-16-2012)
If you can't see the picture , please let me know
I'm not native English if you know what i mean . I speak Japanese
I will make the guide as simple as possible :
_You need Toshiba Bluetooth Stack or Click here (Toshiba BT stack should work on any pc , it doesn't matter Toshiba pc or not) and USB Bluetooth dongle (You can buy it on amazon , ebay... )
_Don't use many Bluetooth drivers otherwise you will have driver conflicting issue . If you're using Toshiba , you must uninstall the other driver
USB BT class 1 will work with multiple wiimote , the other won't work or only work with 1 wiimote
_You can mod your USB BT for better connection :
http://www.youtube.com/watch?v=cwKWOdOHiWY
_If your wiimote randomly disconnect in the game . Use "Alt-F5" many times or Click here

Warning : ( Please click on spoiler to show )
Spoiler: (Show Spoiler)
Dolphin hate 3rd party / fake wiimote . Ofcourse , they work fine with the real console - Wii . Even if you bought the working 3rd party / fake wiimote , you would have problem later with Dolphin (like random disconnecting , button not response ...)
You should buy official Nintendo Wiimote .

Aside from third party wiimote . There are 2 types of original wiimote:
_Wii Remote Plus (also called "Wiimote Plus") with motion plus built-in
_Wiimote + Motion Plus add-on

Wiimote Plus also has 2 models :
_Old Model : code name Nintendo RVL-CNT-01
_New Model : code name Nintendo RVL-CNT-01-TR

New model might work or not work with Dolphin (See Post#3) , Old model work with Dolphin as long as they're official Nintendo Wiimote

"The Legend of Zelda Skyward Sword Limited Edition Gold Wiimote Plus " (bundle with the game) are old model , those Zelda Wiimote Plus should work 100% with Dolphin . However , Zelda Wiimote Plus are rare and really expensive

To put it simply :
New model Wiimote Plus = 50% don't work (bet on your luck)
Limited Zelda Gold Wiimote Plus = definitely work
Original Regular Wiimote + Motion Plus add-on = should work
Third party Wiimote/ Fake Wiimote = 80% don't work

For Dolphin , you'll need 1 of 2 options :
1)Nintendo Wiimote Plus , Wireless or USB Sensor Bar , Nunchuk , USB Bluetooth Dongle
2)Nintendo Wiimote + Motion Plus , Wireless or USB Sensor Bar , Nunchuk , USB Bluetooth Dongle

New Wiimote Plus
("Motion Plus Inside" line is placed at the bottom of wiimote , normal wiimote don't have that line . Warning : I can't guarantee this will work or not)

Zelda Gold Wiimote Plus or the whole pack

Regular Wiimote

Motion Plus

Official Wireless Sensor Bar :
http://www.amazon.com/Official-Nintendo-Wii-Wireless-Sensor-Extended/dp/B002E1MLR8

USB BT Dongle :
http://www.amazon.com/iClever%C2%AE-IN-8510-40-Bluetooth-Adapter-Dongle/dp/B00FR8Z75I/ref=sr_1_3?ie=UTF8&qid=1413196558&sr=8-3&keywords=iclever+bluetooth+4.0

Nunchuk :
http://www.amazon.com/Wii-Nunchuk-Controller-White-nintendo/dp/B000IMYKQ0/ref=sr_1_2?ie=UTF8&qid=1352709686&sr=8-2&keywords=nunchuk
How do Wii accessories work (Click on the link "How does this work ?")

How to : Convert Nintendo Wii Sensor Bar to USB Sensor Bar

[color=#32CD32]Wiimote PC Guide :[/color]

Step 1

_Install Toshiba BT Stack

Step 2

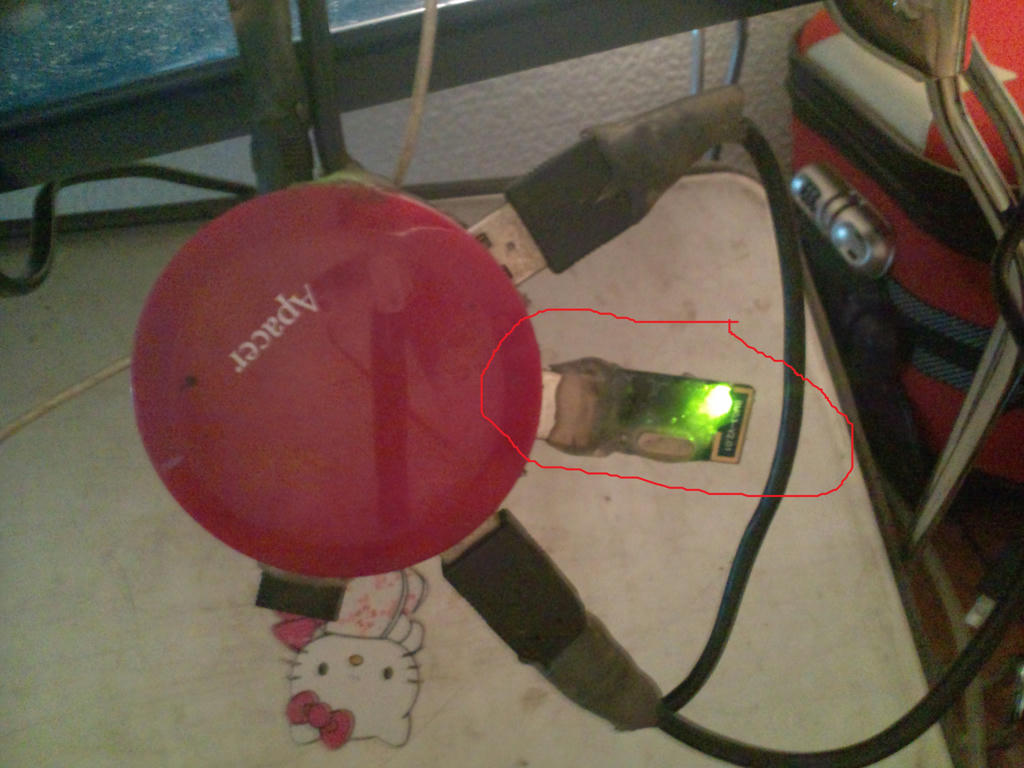

_Plug USB Bluetooth dongle into PC

[Image: 4k43pa4chc4q4g06g.jpg]

Step 3

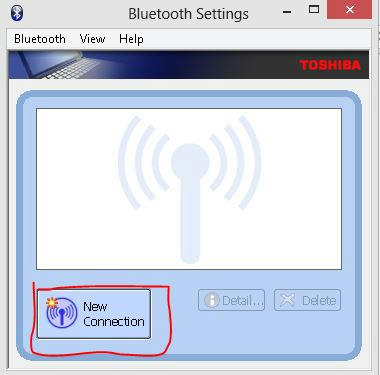

_Start Toshiba Bluetooth Settings and click "New Connection"

[Image: 9u3knn9y623ir6c6g.jpg]

Step 4

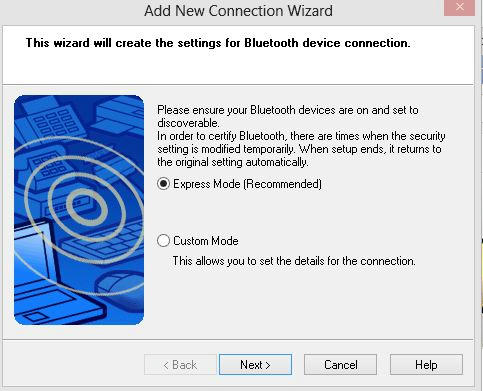

_Select "Express Mode" - Next >

[Image: u2u2jdu2fapaa0a6g.jpg]

Step 5

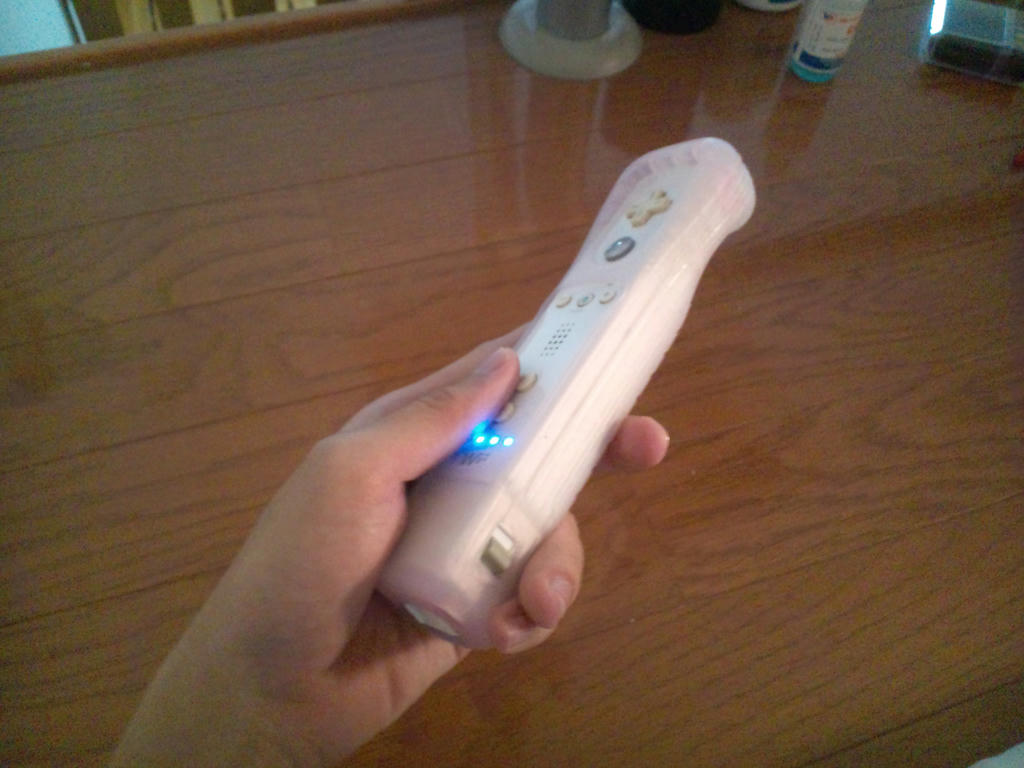

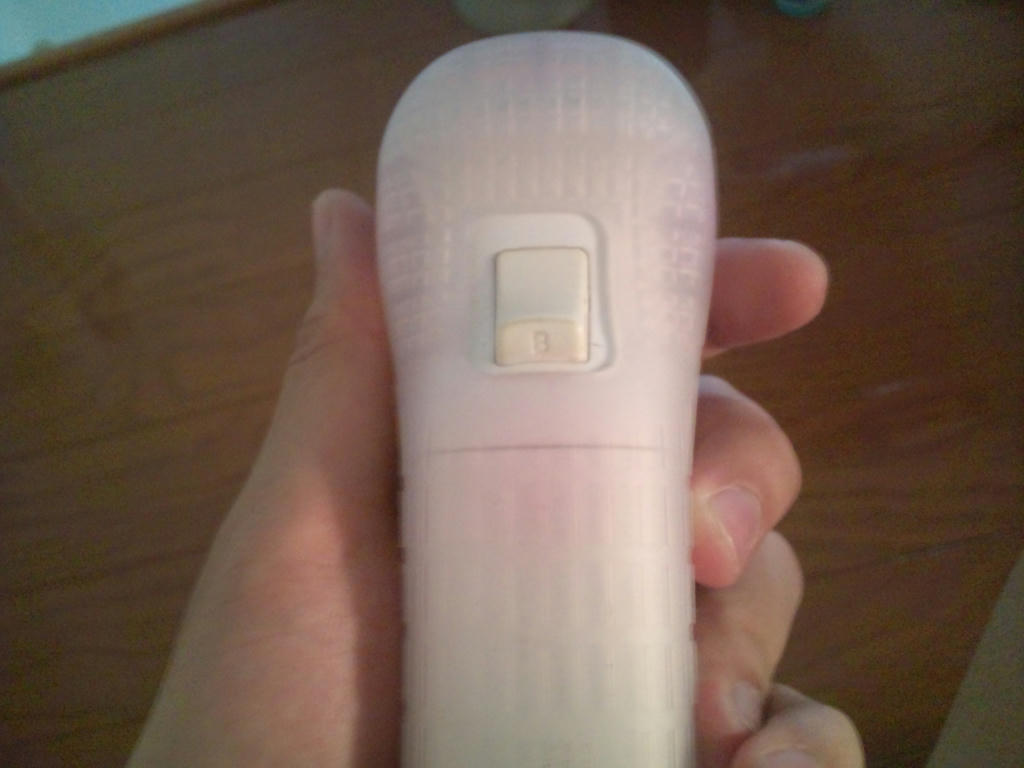

_Searching....Press "1" & "2" on wiimote or Press the sync button (red color) or Press "B" button if you have wiimote plus

[Image: fdb8vcga3bzo8i46g.jpg]
[Image: nxk8482420kg2iq6g.jpg]
[Image: sotpsmdz8daubic6g.jpg]

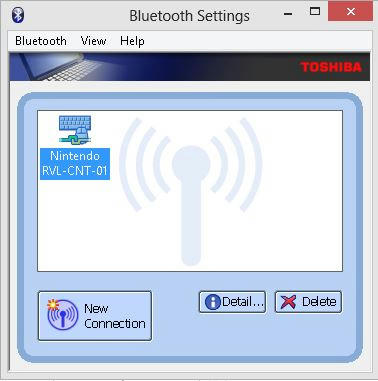

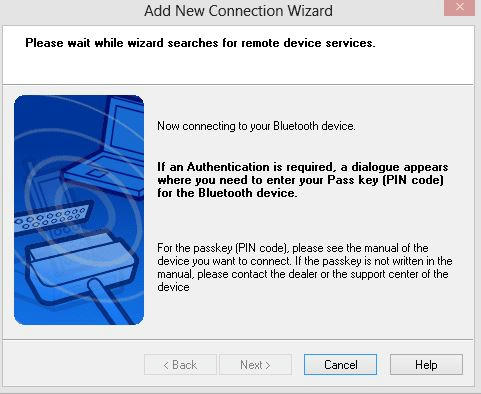

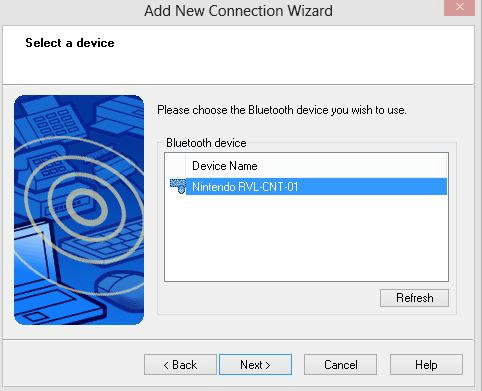

Step 6

_Next >

[Image: 331a2brd52zd8v66g.jpg]

[Image: uttw7z1ss361ti46g.jpg]

[Image: q09z9x81fg31r3y6g.jpg]

Step 7

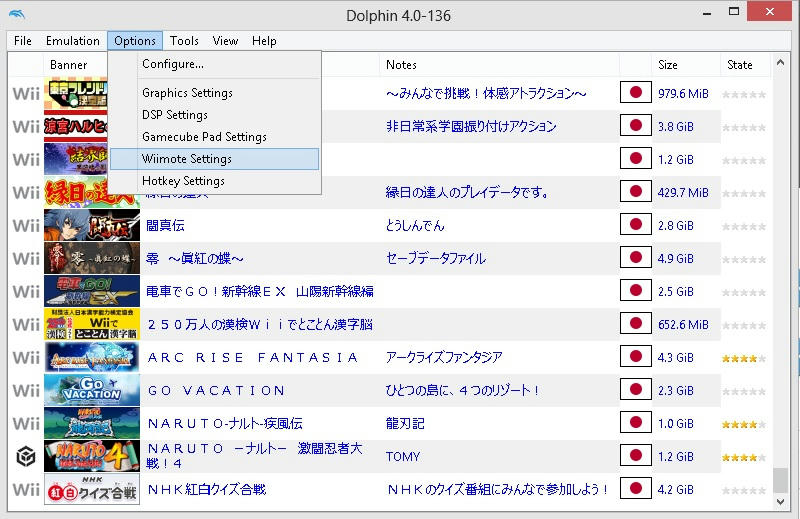

_Start Dolphin Emulator - Wiimote Settings

[Image: gnl9dg3pfsmd26c6g.jpg]

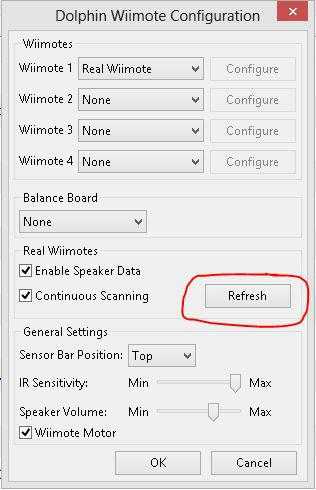

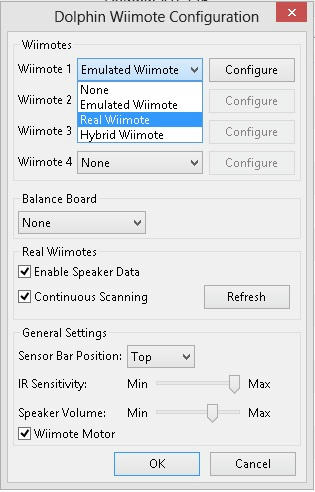

_Select "Real Wiimote" and click "Refresh Wiimote"

[Image: 753btvaiptt7g766g.jpg]
[Image: zjsdnw5wj91268t6g.jpg]
Find
Reply
06-04-2012, 12:50 PM
#2
Tomkun Offline
Member
***
Posts: 138
Threads: 13
Joined: Aug 2011
英語分かりやすかった。
Which version of Dolphin are you using there? The WiiMote options menu doesn't look like that any more, I think.
Windows 7 x64
i5 2500K @4.6Ghz
8GB DDR3 1600
Nvidia GTX 660Ti
Find
Reply
06-04-2012, 01:05 PM (This post was last modified: 04-03-2013, 11:38 AM by admin89.)
#3
admin89 Offline
Overclocker™ ✓ᵛᵉʳᶦᶠᶦᵉᵈ
*******
Posts: 6,889
Threads: 127
Joined: Nov 2009
(06-04-2012, 12:50 PM)Tomkun Wrote: 英語分かりやすかった。
I can speak English fluently but my writing skills are horrible

(06-04-2012, 12:50 PM)Tomkun Wrote: Which version of Dolphin are you using there? The WiiMote options menu doesn't look like that any more, I think.
Dolphin 3.0
Update latest version in the attachment now

Note : If you have RVL-CNT-01-TR Wiimote , please try this
(12-28-2011, 06:57 AM)Sukid Wrote:
(12-27-2011, 03:19 PM)tooji Wrote: Would it be at all possible for someone to post a ground up tutorial or guide to get these working from just getting it out of the box to it working with dolphin?

I have this version of the wiimote and have followed some of this thread but I am getting confused as all hell. Explain it like you think I'm a five year old because when it comes to this stuff thats pretty much what I am.
Although it's yet to work properly for me (I continue to get "no supported bluetooth device detected, only compatable with windows stack" even with the modified version) this is how you do it.

1. Download the toshiba stack here:
http://www.sitecom.com/download/4791/toshiba_8.htm
(might have to click it a few times to get it to work)

2. Get your bluetooth dongle's hardware ID and then uninstall it. Go to control panel, device manager, and click on bluetooth radios. Right click the listed device (ignore the enumerator one), click properties, go to the details tab, and select Hardware ID. It should list something like
USB\VID_0A5C&PID_2148&REV_0818
USB\VID_0A5C&PID_2148
The second number is what you want. Copy that down in notepad.
Now uninstall the device. Then go back to Control Panel, go to Programs and Features, and look for any bluetooth software there and uninstall it.

3. Unplug your bluetooth device.

4. Now extract the zip you downloaded and run setup. Once you get the message to plug in your bluetooth device, open windows explorer and go to C:\Program Files (x86)\Toshiba\Bluetooth Toshiba Stack\Drivers\tosrfusb\
Do not close the installer, just leave it where it is.

5. Copy tosfrusb.inf (or the one described as "system information") into a different folder. You can't edit it directly where it is. Then open the copied one in notepad and add your hardware ID to it. You'll see two lists that start with "%TosrfUsb.DeviceDesc1%=TosrfUsb_Device". The % number increases depending on how many are on the list, ending at 149. They have device IDs next to them. Add your device Id to the bottom of each one, like so:
%TosrfUsb.DeviceDesc150%=TosrfUsb_Device, USB\VID_0A5C&PID_2148
At the very bottom of the file is a place for the device description. Name it whatever you want, though preferrably the actual name of the device. Example:
TosrfUsb.DeviceDesc150 = "IOGEAR USB 2.1 Bluetooth Micro Adapter (GBU421)"

6. Save changes, then copy the modified tosfrusb.inf back into the original folder. Then plug in your bluetooth device and finally click ok on the installer message. Everything should install as planned and then you will be asked to restart. Do so and everything will be successfully installed.


Attached Files Thumbnail(s)

Laptop: (Show Spoiler)
Clevo W230SS : 3200x1800 IPS | i7 4700MQ @ 3.6GHz (Intel XTU + Triple fan mod) | GTX 860M GDDR5 | 128GB Toshiba CFD SSD | 16GB DDR3L 1600MHz
Aspire 715 43G : 1080p 144Hz |  R5 5625U @ 4.3GHz | Nvidia RTX 3050 4GB | 500GB WD SSD  | 16GB DDR4 3200MHz
Mini PC :: (Show Spoiler)
G3258 @ 4.6GHz | ELSA GTX 750 | Asrock Z87E ITX | 600W SFX 80+ Gold Silverstone + SG06-LITE | Corsair Vengeance 8GB 2000MHz | Scythe Kozuti + Ao Kaze | 45TB 2.5" Ex HDD (in total) , Zelda Gold Wiimote , LE Wii Classic Controller , Gold LE PS3 DualShock , BlackWidow Chroma ,
Now Playing : Xenoblade Definitive Edition on Yuzu - Switch Emu


Find
Reply
06-04-2012, 01:10 PM
#4
Tomkun Offline
Member
***
Posts: 138
Threads: 13
Joined: Aug 2011
Perhaps it would be nicer with screenshots instead of photos? Apart from that it is an easy to follow guide.
Windows 7 x64
i5 2500K @4.6Ghz
8GB DDR3 1600
Nvidia GTX 660Ti
Find
Reply
06-04-2012, 02:15 PM (This post was last modified: 10-10-2013, 10:44 PM by admin89.)
#5
admin89 Offline
Overclocker™ ✓ᵛᵉʳᶦᶠᶦᵉᵈ
*******
Posts: 6,889
Threads: 127
Joined: Nov 2009
[color=#32CD32]Bonus : How to use Wiimote in GameCube games
[/color]

Things you need :
_Wiimote & Nunchuk
_Glovepie Emulator
_Glovepie Scripts . Ex :
Code:
Key.F = (-1.2 < wiimote.Nunchuk.JoyX < -0.5)
Key.H = (0.5 < wiimote.Nunchuk.JoyX < 1.2)
Key.T = (-1.2 < wiimote.Nunchuk.JoyY < -0.5)
Key.G = (0.5 < wiimote.Nunchuk.JoyY < 1.2)


Key.J = wiimote1.A
Key.O = Wiimote1.Nunchuk.ZButton
Key.Space = Wiimote1.Nunchuk.CButton
Key.I = Wiimote1.B
Key.M = Wiimote1.Minus
Key.L = Wiimote1.Plus
Key.U = Wiimote1.Down
Key.Space = Wiimote1.Left

Key.Enter = Wiimote1.Home

wiimote.Leds = false

_USB BT dongle

Step 1 :

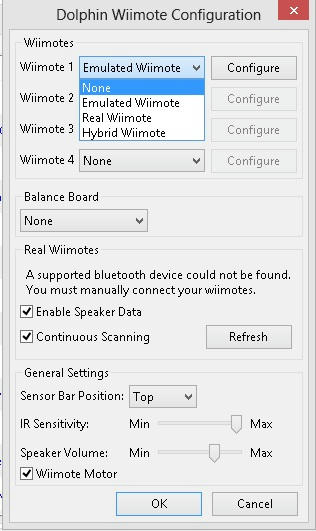

_Dolphin - Wiimote Settings -Select "None"
This will prevent wiimote connecting to dolphin(wii)

[Image: zoniram494na2a46g.jpg]

Step 2 :

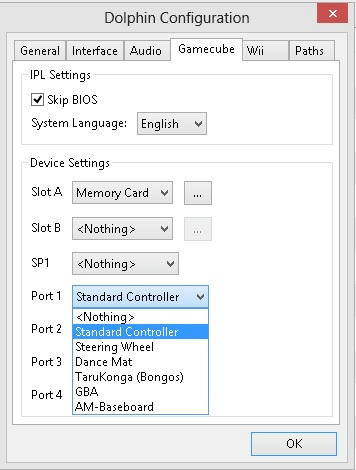

_Make sure you set Port 1 as "Standard Controller"

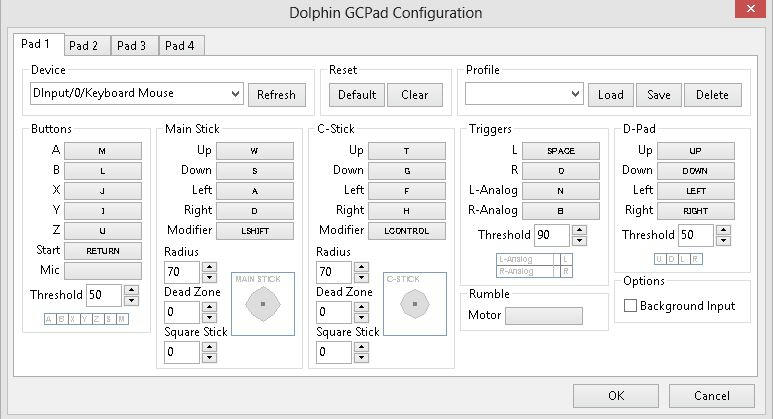

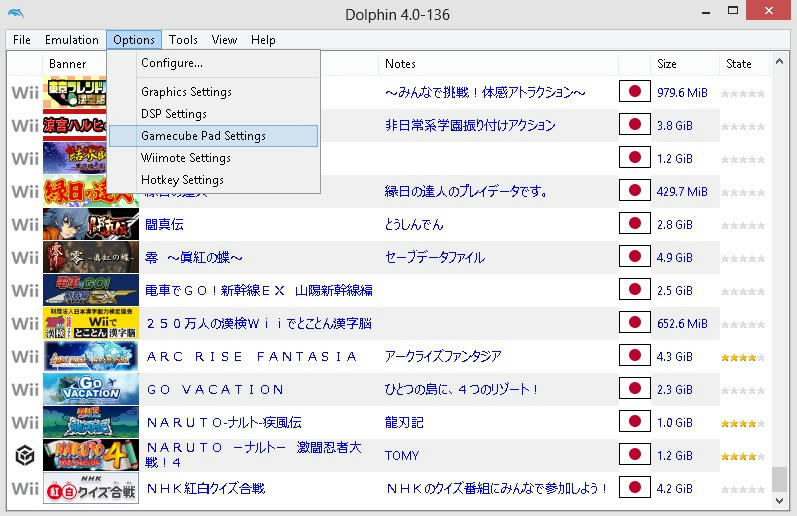

_Map keyboard to GameCube Pad Settings

[Image: qnd6qt5cu1j8xyu6g.jpg]

[Image: 8bbaurep8davac46g.jpg]

[Image: wmnxr1rohd34jb46g.jpg]


Step 3 :

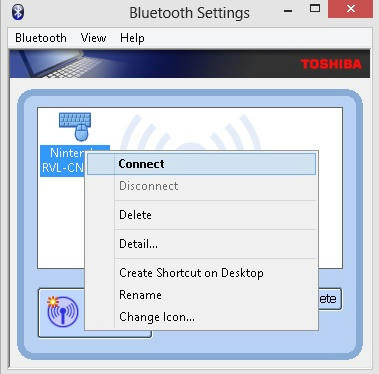

_Start Toshiba Bluetooth Settings . Press "1" & "2" on wiimote and select "connect"

[Image: 13ei7wdjatz67ye6g.jpg]

Step 4 :

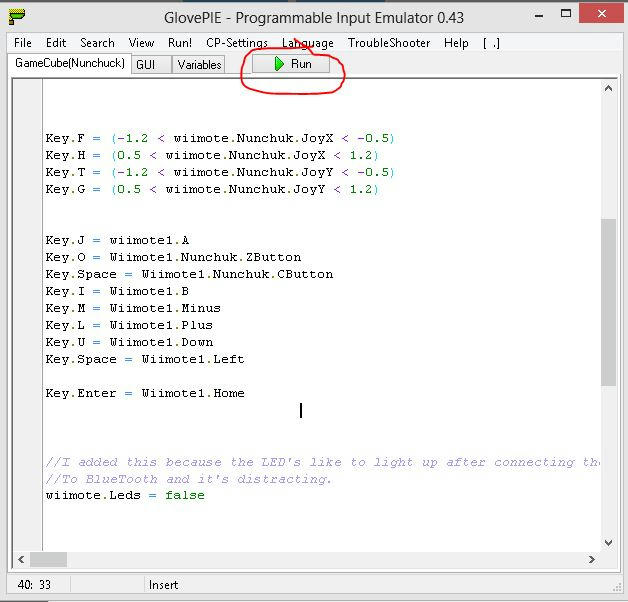

_Map all wiimote buttons to keyboard then hit "Run"

[Image: ubjs98e6cj7g4rv6g.jpg]
Laptop: (Show Spoiler)
Clevo W230SS : 3200x1800 IPS | i7 4700MQ @ 3.6GHz (Intel XTU + Triple fan mod) | GTX 860M GDDR5 | 128GB Toshiba CFD SSD | 16GB DDR3L 1600MHz
Aspire 715 43G : 1080p 144Hz |  R5 5625U @ 4.3GHz | Nvidia RTX 3050 4GB | 500GB WD SSD  | 16GB DDR4 3200MHz
Mini PC :: (Show Spoiler)
G3258 @ 4.6GHz | ELSA GTX 750 | Asrock Z87E ITX | 600W SFX 80+ Gold Silverstone + SG06-LITE | Corsair Vengeance 8GB 2000MHz | Scythe Kozuti + Ao Kaze | 45TB 2.5" Ex HDD (in total) , Zelda Gold Wiimote , LE Wii Classic Controller , Gold LE PS3 DualShock , BlackWidow Chroma ,
Now Playing : Xenoblade Definitive Edition on Yuzu - Switch Emu


Find
Reply
06-04-2012, 02:37 PM
#6
Gir Offline
Chaotix
****
Posts: 310
Threads: 21
Joined: Mar 2012
awesome, now do a tutorial on how to use the PlayStation Move Controller as a Wii Remote
Find
Reply
06-04-2012, 02:57 PM
#7
admin89 Offline
Overclocker™ ✓ᵛᵉʳᶦᶠᶦᵉᵈ
*******
Posts: 6,889
Threads: 127
Joined: Nov 2009
Unfortunately , I don't have one Sad
Laptop: (Show Spoiler)
Clevo W230SS : 3200x1800 IPS | i7 4700MQ @ 3.6GHz (Intel XTU + Triple fan mod) | GTX 860M GDDR5 | 128GB Toshiba CFD SSD | 16GB DDR3L 1600MHz
Aspire 715 43G : 1080p 144Hz |  R5 5625U @ 4.3GHz | Nvidia RTX 3050 4GB | 500GB WD SSD  | 16GB DDR4 3200MHz
Mini PC :: (Show Spoiler)
G3258 @ 4.6GHz | ELSA GTX 750 | Asrock Z87E ITX | 600W SFX 80+ Gold Silverstone + SG06-LITE | Corsair Vengeance 8GB 2000MHz | Scythe Kozuti + Ao Kaze | 45TB 2.5" Ex HDD (in total) , Zelda Gold Wiimote , LE Wii Classic Controller , Gold LE PS3 DualShock , BlackWidow Chroma ,
Now Playing : Xenoblade Definitive Edition on Yuzu - Switch Emu


Find
Reply
06-04-2012, 10:00 PM
#8
LordVador Offline
Christmas Vader
*******
Posts: 8,851
Threads: 1,908
Joined: Mar 2011
Very nice tutorial. You could add a part about the sensor bar. Btw your english is excellent Smile
[color=#ff0000][color=#006600]i5 3570K @ 4.5GHz/GTX 660 Ti/RAM 4GB/Win7 x64[/color][/color]
Find
Reply
06-04-2012, 10:12 PM
#9
DefenderX Offline
The comedy never ends.
*******
Posts: 4,617
Threads: 186
Joined: Dec 2011
nice tutorial, i like it Smile

Better than the guide at the main page.
[Image: IEZtsj]
[Image: 8fhx2zum.gif]
Website Find
Reply
06-04-2012, 10:32 PM
#10
AnyOldName3 Offline
First Random post over 9000
*******
Posts: 3,519
Threads: 1
Joined: Feb 2012
Can I just ask, has anyone found a free version of the toshiba stack which will last for more than 30 days? If not, then it's probably best to recommend that people stick to the MS stack, as long as they don't have a TR Wiimote.
OS: Windows 10 64 bit Professional
CPU: AMD Ryzen 5900X
RAM: 16GB
GPU: Radeon Vega 56
Find
